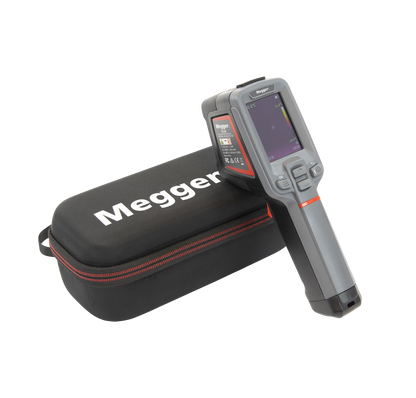

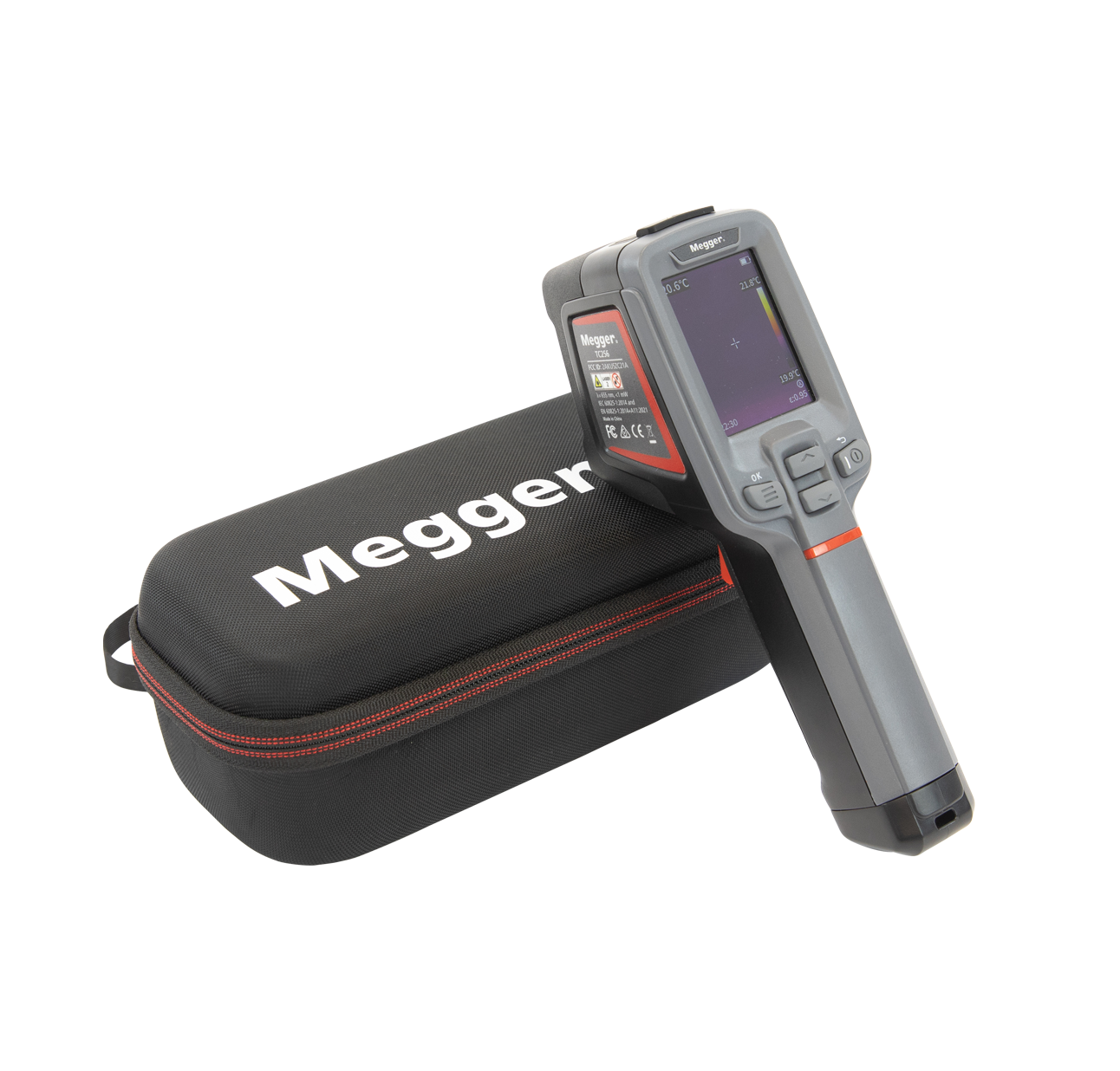

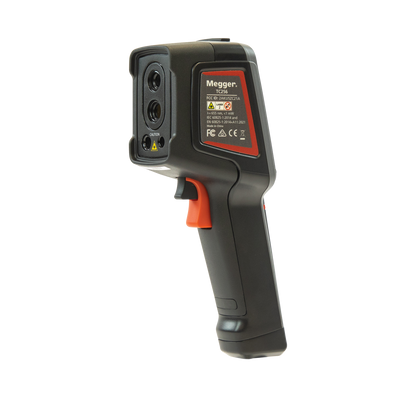

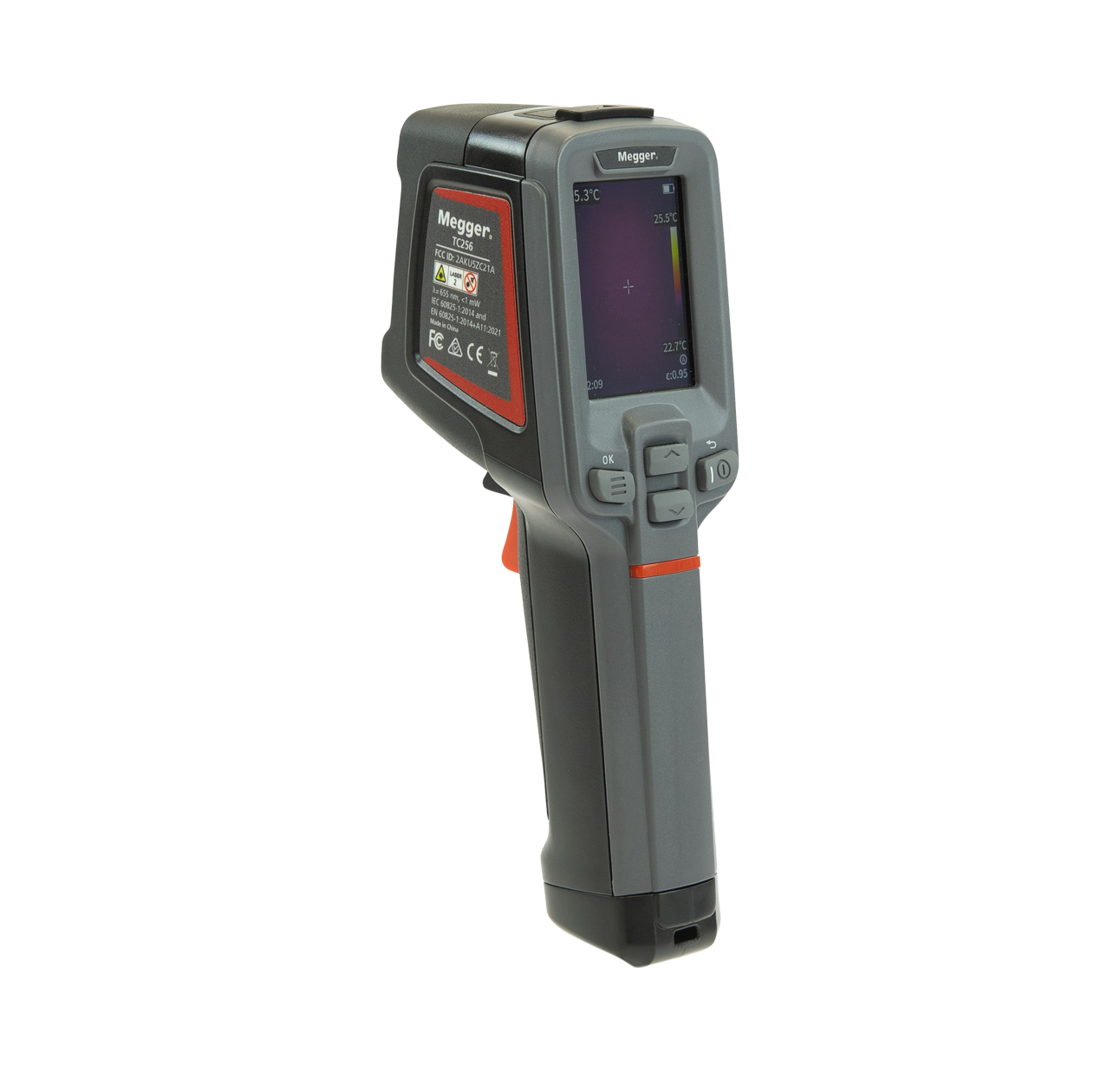

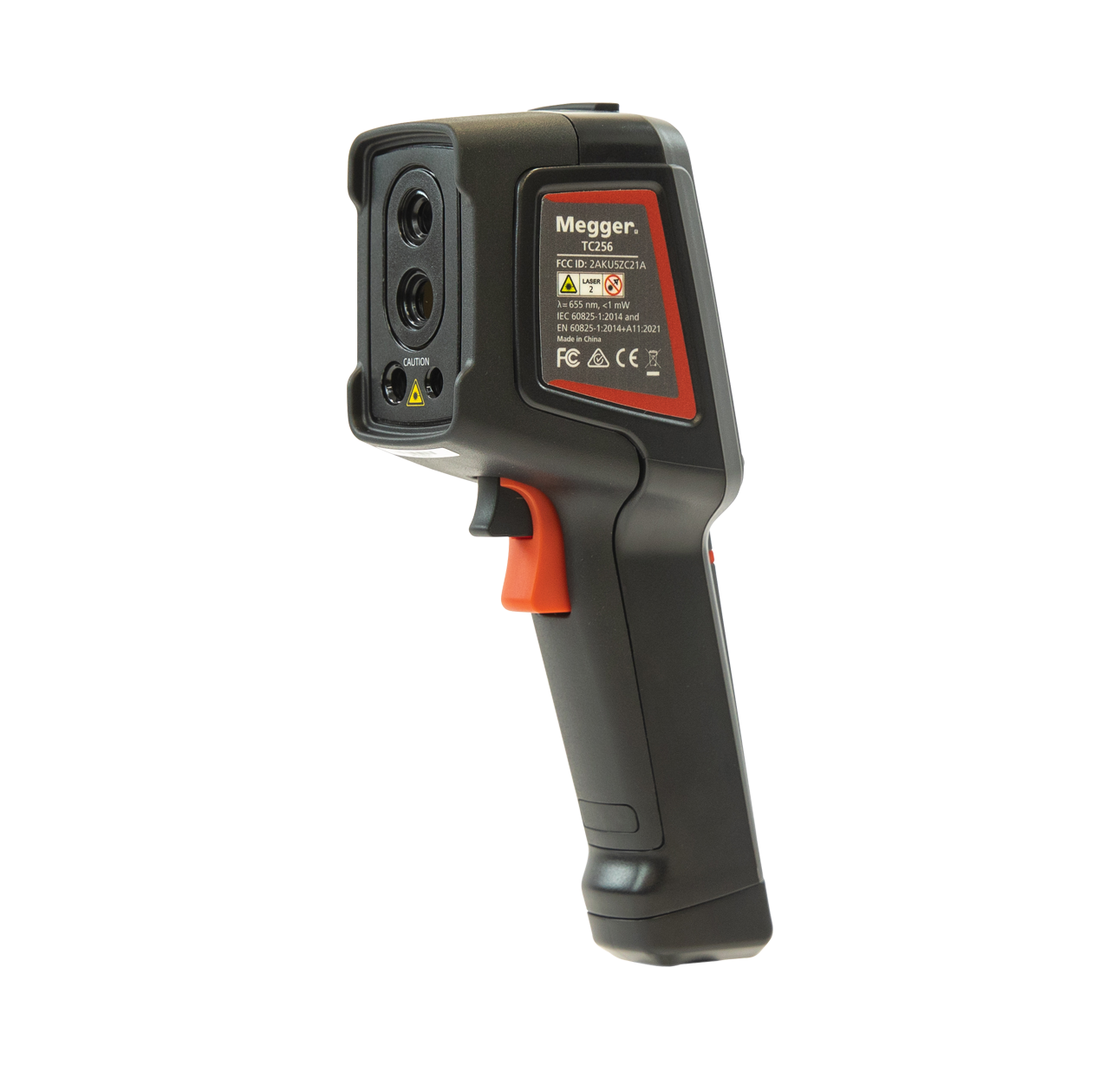

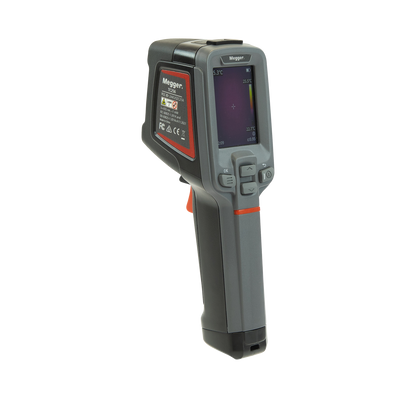

Megger TC256 Thermal Imaging Camera

Key Features

• 256 x 192 infrared resolution with 512 x 384 super resolution for clearer, more detailed thermal images
• -20°C to 550°C temperature measurement range with automatic switching for a wide range of inspection tasks
• Wi-Fi, photo/video recording and ThermoLink PC support for image sharing, video transmission, analysis and reporting


Overview

The Megger TC256 Thermal Imaging Camera is a high-resolution handheld thermal camera designed for more demanding inspection tasks across electrical, mechanical and building applications. With a 256 x 192 infrared detector and real-time super resolution reconstruction up to 512 x 384, it provides clear, detailed thermal images to help users identify faults quickly and accurately.

Designed for professional field use, the TC256 includes infrared, visible light, picture-inpicture and multi-image fusion modes. These imaging options allow users to capture thermal data, view standard images, overlay infrared information onto visible images, or combine thermal and visible details to help pinpoint faults more effectively.

The Megger TC256 also includes a 2MP visible light camera, built-in laser indication and integrated spotlight, supporting accurate targeting and improved visibility in darker or enclosed environments. Its automatic focusing mode further helps users capture clear images during inspection work.

With a -20°C to 550°C temperature measurement range, photo and video recording, Wi-Fi, 16GB internal storage and USB Type-C connectivitym the TC256 is well suited to users who need to capture, store, transfer and report on thermal inspection data. It is compatible with the ThermoLink PC application and Thermography mobile app, allowing images and real-time video to be shared and analysed more easily.

Includes

• NATA calibration certificate
• Protective Carry Case
• USB Cable
• Charger
• Wrist Strap
• Quick Start Guide
