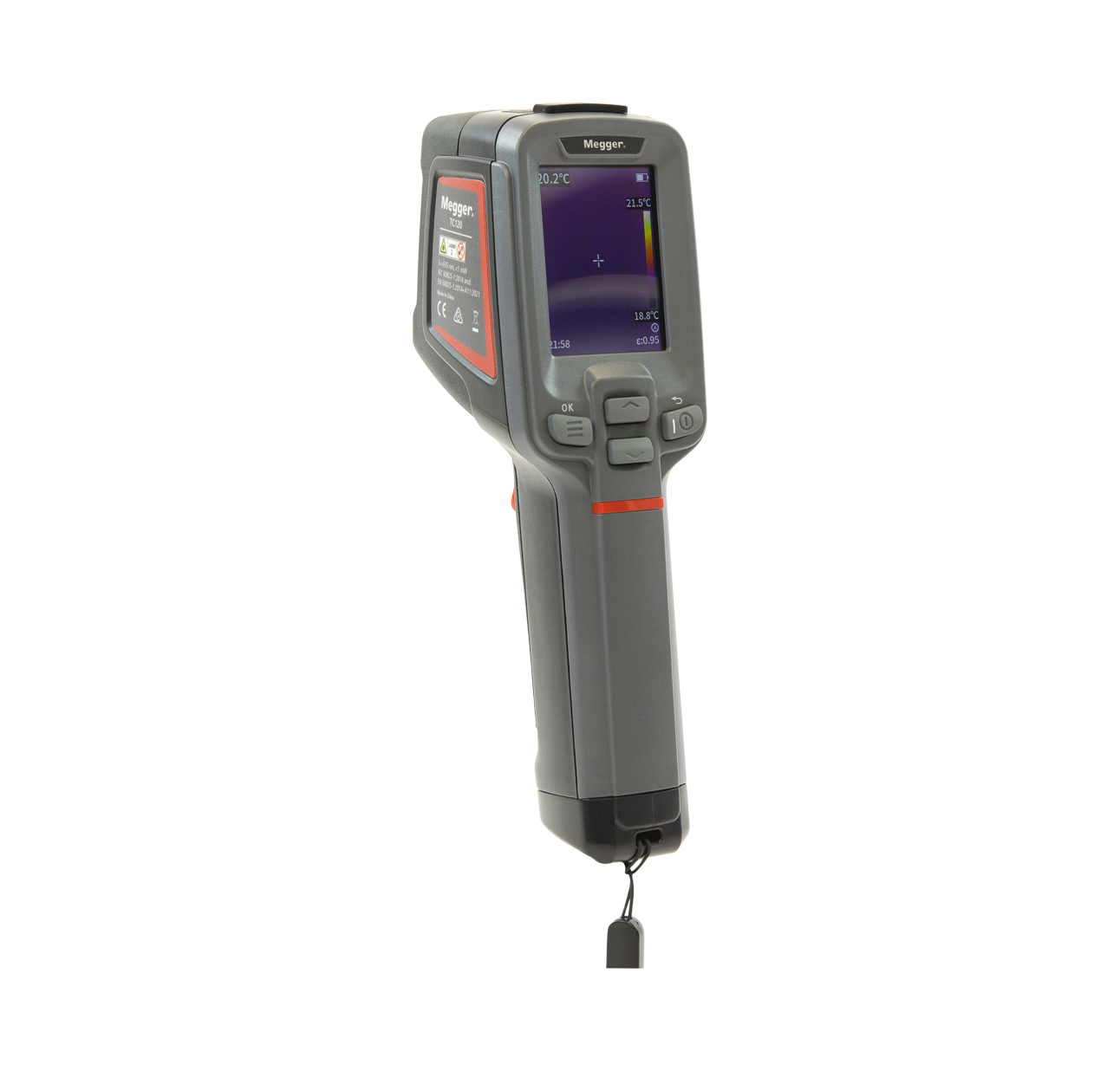

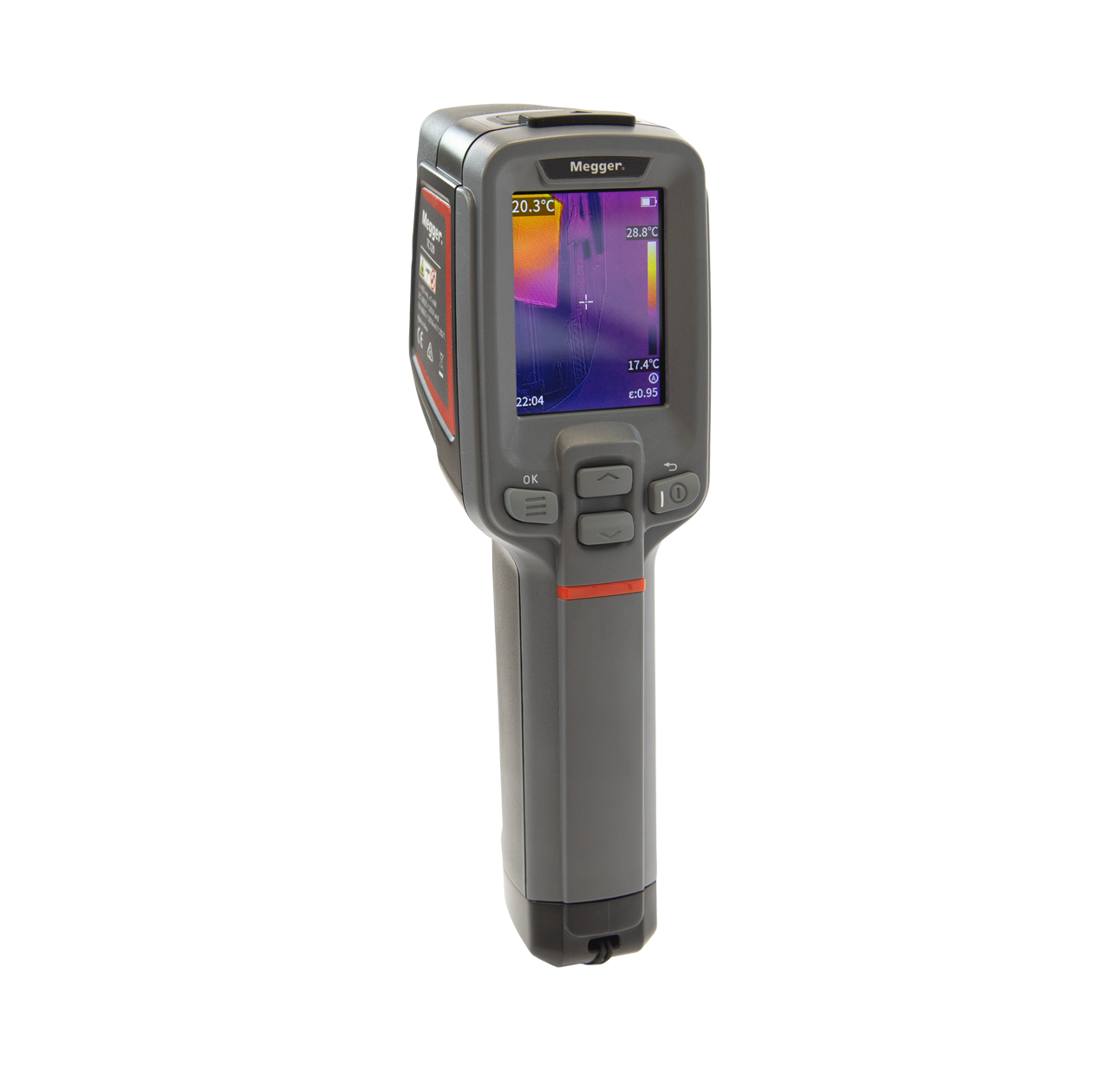

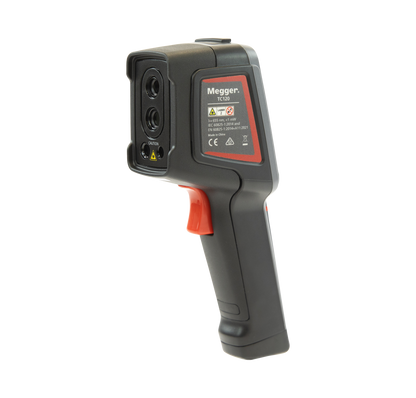

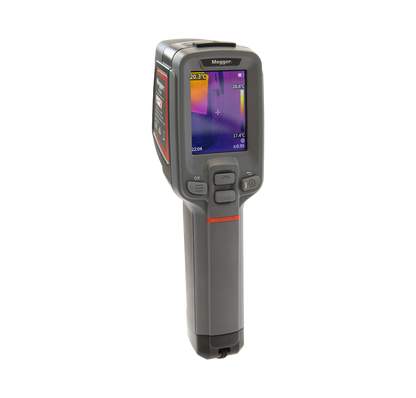

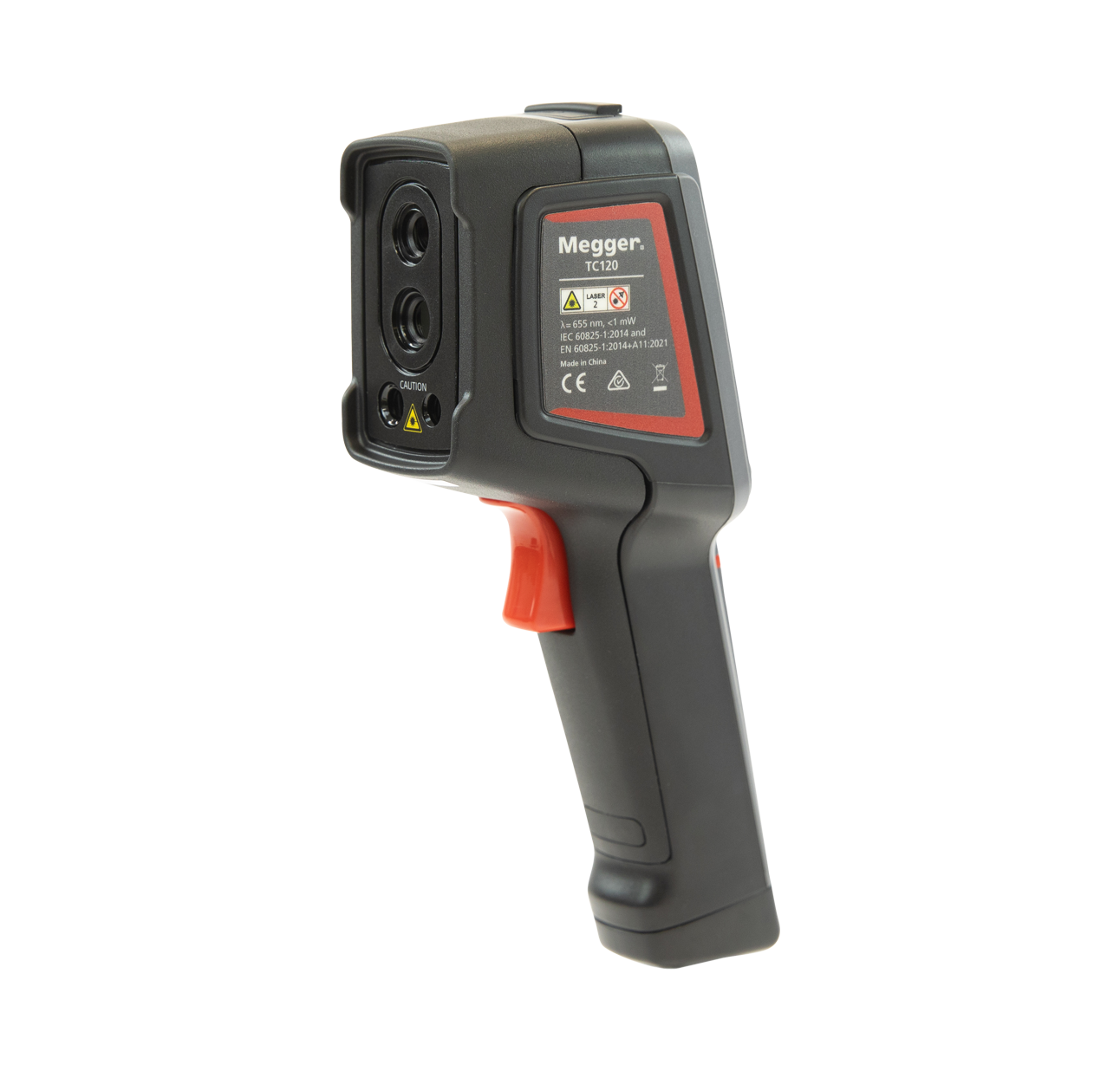

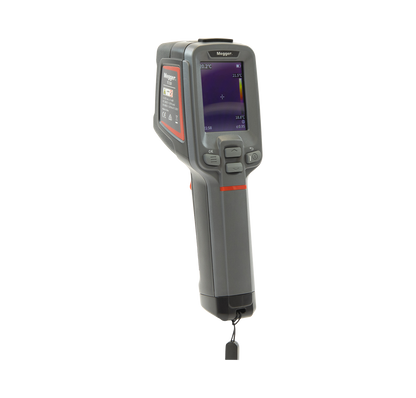

Megger TC120 Thermal Imaging Camera

Key Features

• 120 x 90 infrared resolution with 240 x 180 super resolution to enhance image detail and reduce noise
• -20°C to 550°C temperature measurement range with automatic switching for a wide range of inspection tasks
• Multiple image modes including infrared, visible light, multi-image fusion and picture-in-picture


Overview

The Megger TC120 Thermal Imaging Camera is a compact handheld thermal camera designed for fast and reliable inspections across electrical, mechanical and building applications. Offering simple operation, a lightweight design and clear thermal imaging, it is well suited to technicians and electricians who need quick temperature checks and dependable thermal images in the field.

The TC120 features a high-sensitivity infrared detector with 120 x 90 resolution and real-time super resolution reconstruction up to 240 x 180. This helps enhance image detail and reduce image noise, making it easier to identify hot spots, insulation issues and equipment irregularities before they develop into more serious problems.

For flexible inspection work, the Megger TC120 includes infrared, visible light, multi-image fusion and picture-in-picture image modes. It also features a 2MP visible light camera, laser indication and a spotlight, helping users capture clearer inspection images and target measurement areas more effectively.

The TC120 supports a wide temperature measurement range from -20°C to 550°C with automatic switching, as well as photo and video recording. Results can be stored on the 16GB internal storage, shared via mobile app, or transferred for use with the ThermoLink PC application. With a rechargeable lithium-ion battery, up to 8 hours of operating time, IP54 rating and 2m drop test, the Megger TC120 is built for regular field use.

Includes

• NATA calibration certificate
• Battery
• Charger
• USB Cable
• Wrist Strap
• Quick Start Guide
• Protective Carry Case
