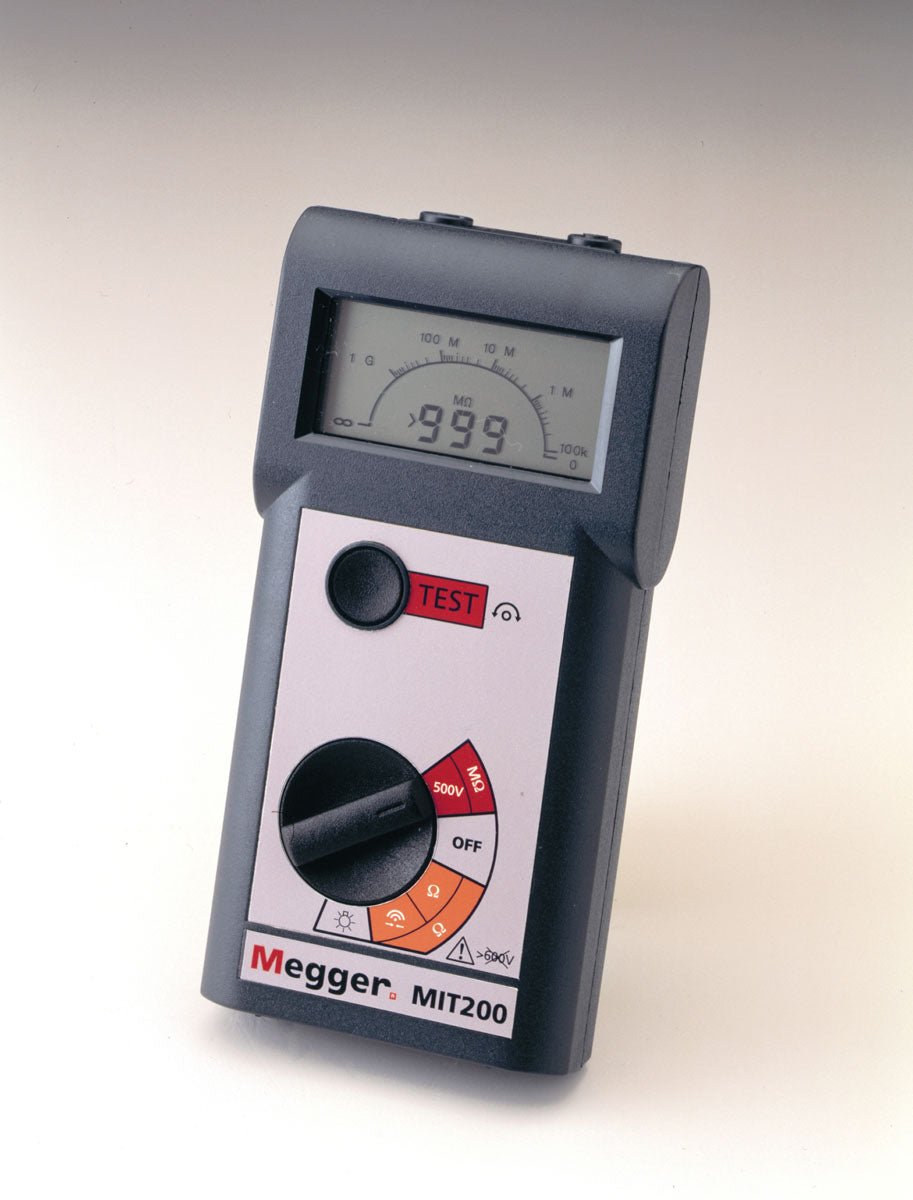

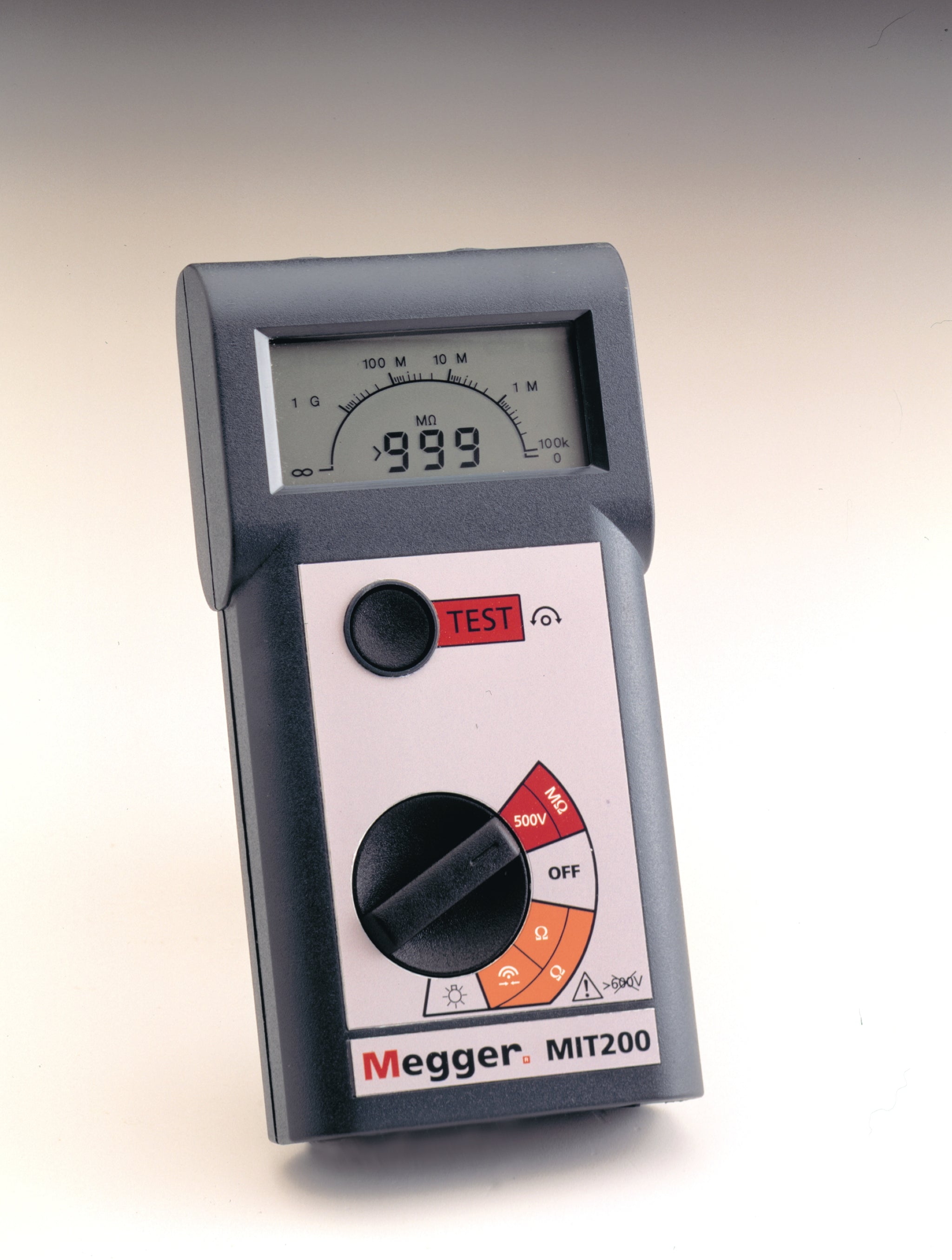

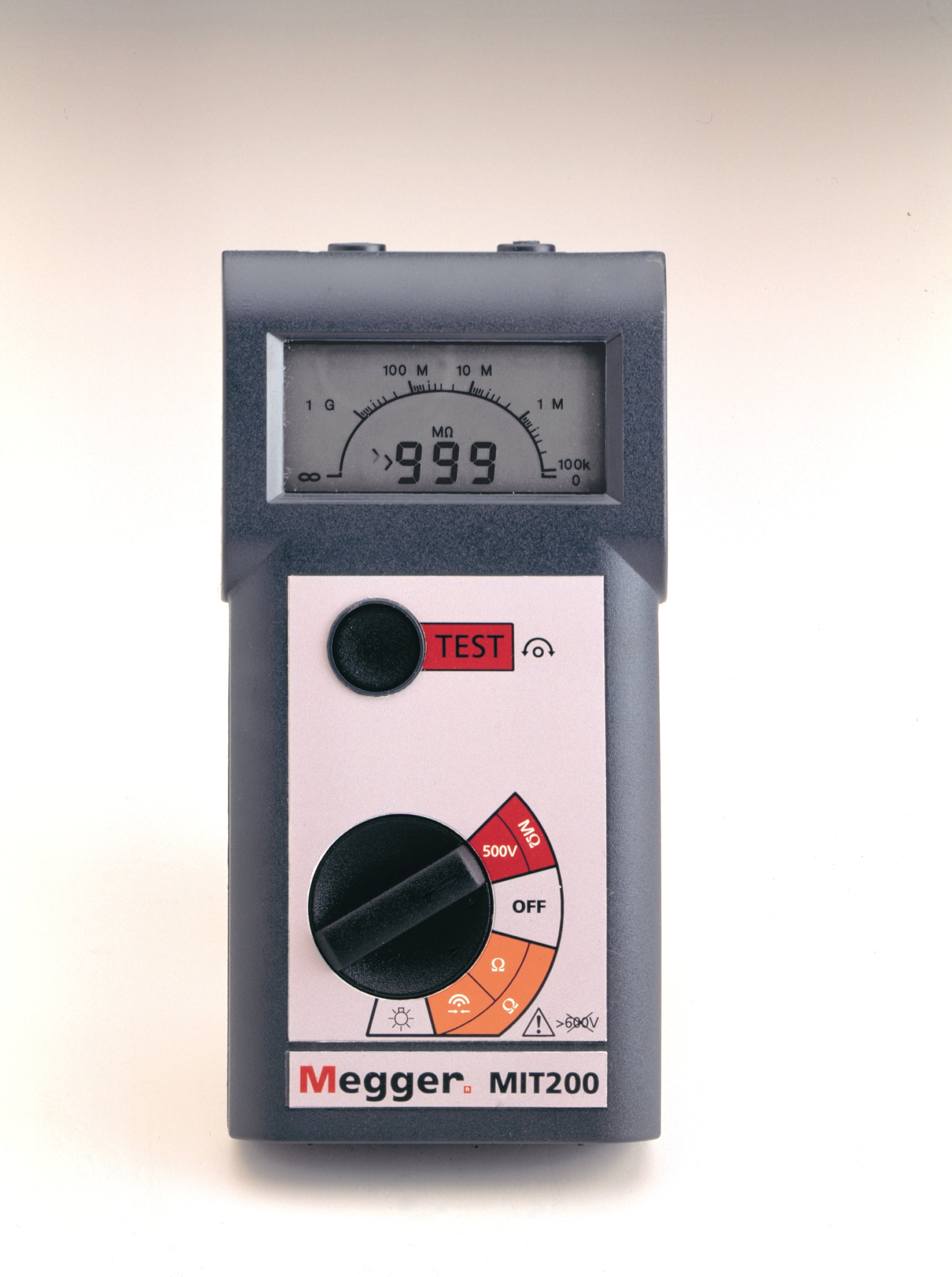

Megger MIT200 Insulation Tester
Megger MIT200 Insulation Tester
Calibration certificate included
Includes a calibration certificate from a NATA accredited calibration laboratory.
📦Free Shipping
Couldn't load pickup availability
Key Features
- Insulation testing to 1000 MΩ
- Continuity testing at 200 mA down to 0.01 Ω
- Live circuit warning (voltage display) and test inhibit
- Digital/analogue display
- Alkaline or rechargeable batteries
- –10 °C to +55 °C operating temperature
- CAT III 600 V
- Conforms to EN 61557
Overview
The MIT200 is one of the most compact insulation testers available on the market today. With options of one, two and three test voltage instruments, the MIT200 series offers a surprising range of safety and operational features.
The display offers a combination of digital readout and analogue display, using Megger’s patented DART technology, so includes the benefits of an LCD display such as clear, accurate measurement and precise readings, with an analogue pointer response for evaluating circuit charge and discharge characteristics.
The instrument housing is in tough ABS, designed to withstand the rigours of hard day-to-day use, and is small enough to drop into your pocket or toolbag.
