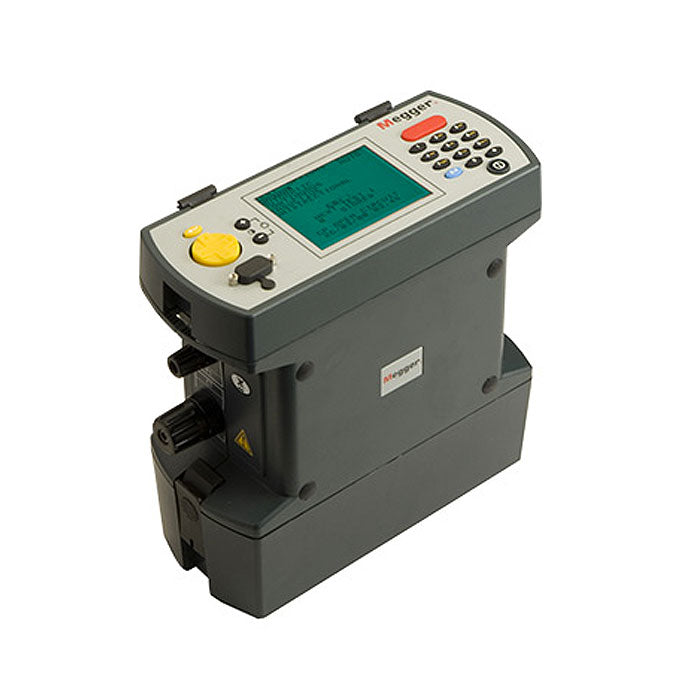

Megger DLRO10X Low Resistance Ohmmeter

Key Features

• Accurate results in under three seconds
• Auto current reversal cancels standing emfs
• Fuse protected to 600 V
• NiMH battery reduces weight
• 250 mW power limit (with optional override) to avoid heating the test sample
• Automatically detects continuity in potential and current connections
• Visible warning of high voltages present at the terminals
• Visible warning of current flowing in the test sample
• Multiple operating modes including fully automatic
• Alpha-numeric keypad for entering test notes
• User settable high and low limits
• Autoranging with Manual option
• Printer output and memory


Overview

The Megger DLRO10X is a fully automatic ductor that will select the most suitable output current (up to 10A DC) in order to measure resistance values between 0.1 micro-Ohms to 2000 Ohms, across seven separate ranges. For users who desire more control over the measurement process, the DLRO 10X uses a menu system controlled by a two-axis paddle to allow manual selection of the test current. DLRO10X Ductor also adds real-time download of results and on-board storage for later download to a PC.

The DLRO10X Ductor is built into a strong, lightweight case that is equally at home in the field or in the laboratory. Light enough to be worn around the neck, they are small enough to be taken into areas which were previously too small to access. The Megger DLRO10X Ductor has a large, backlit LCD display.
