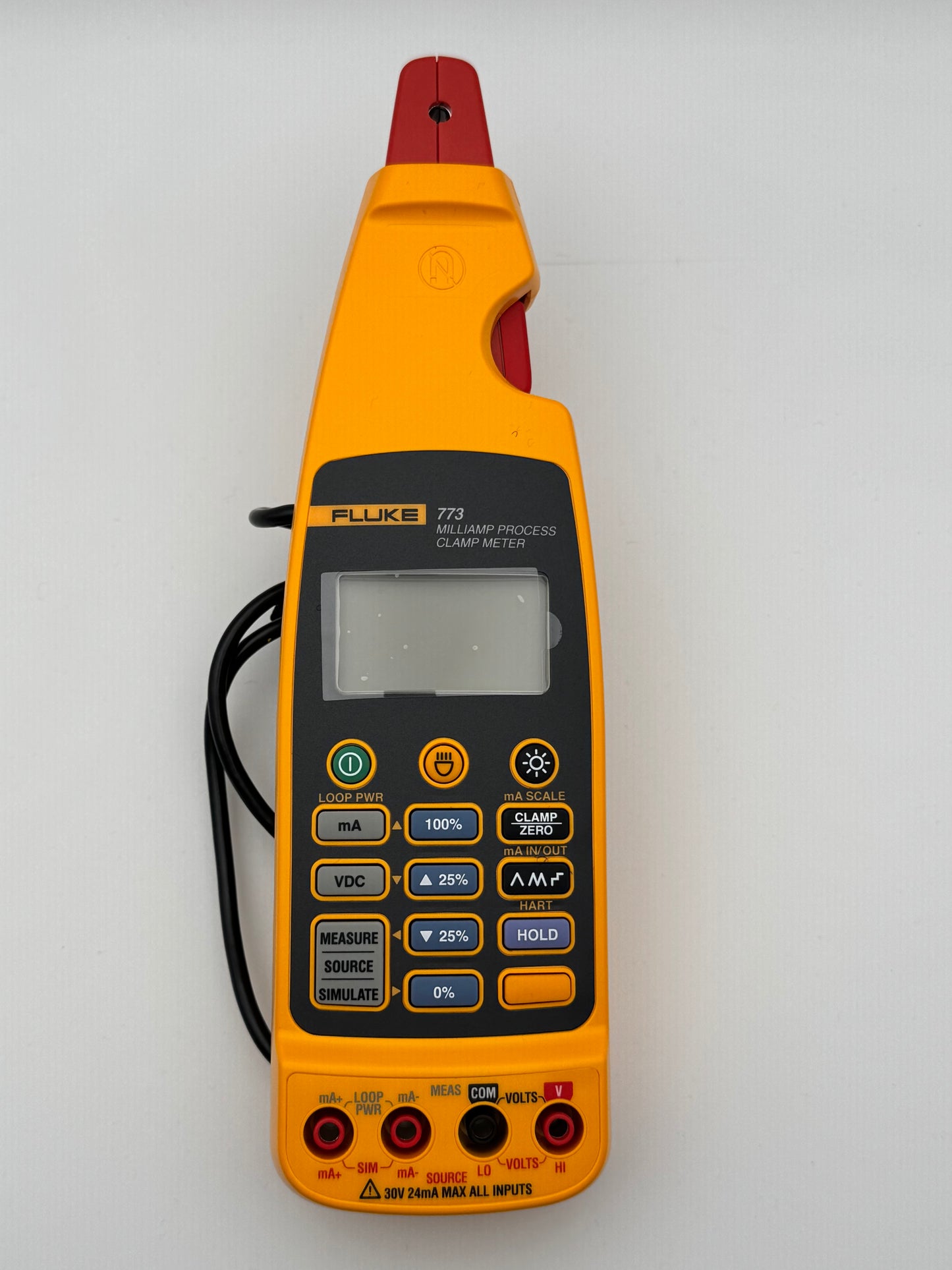

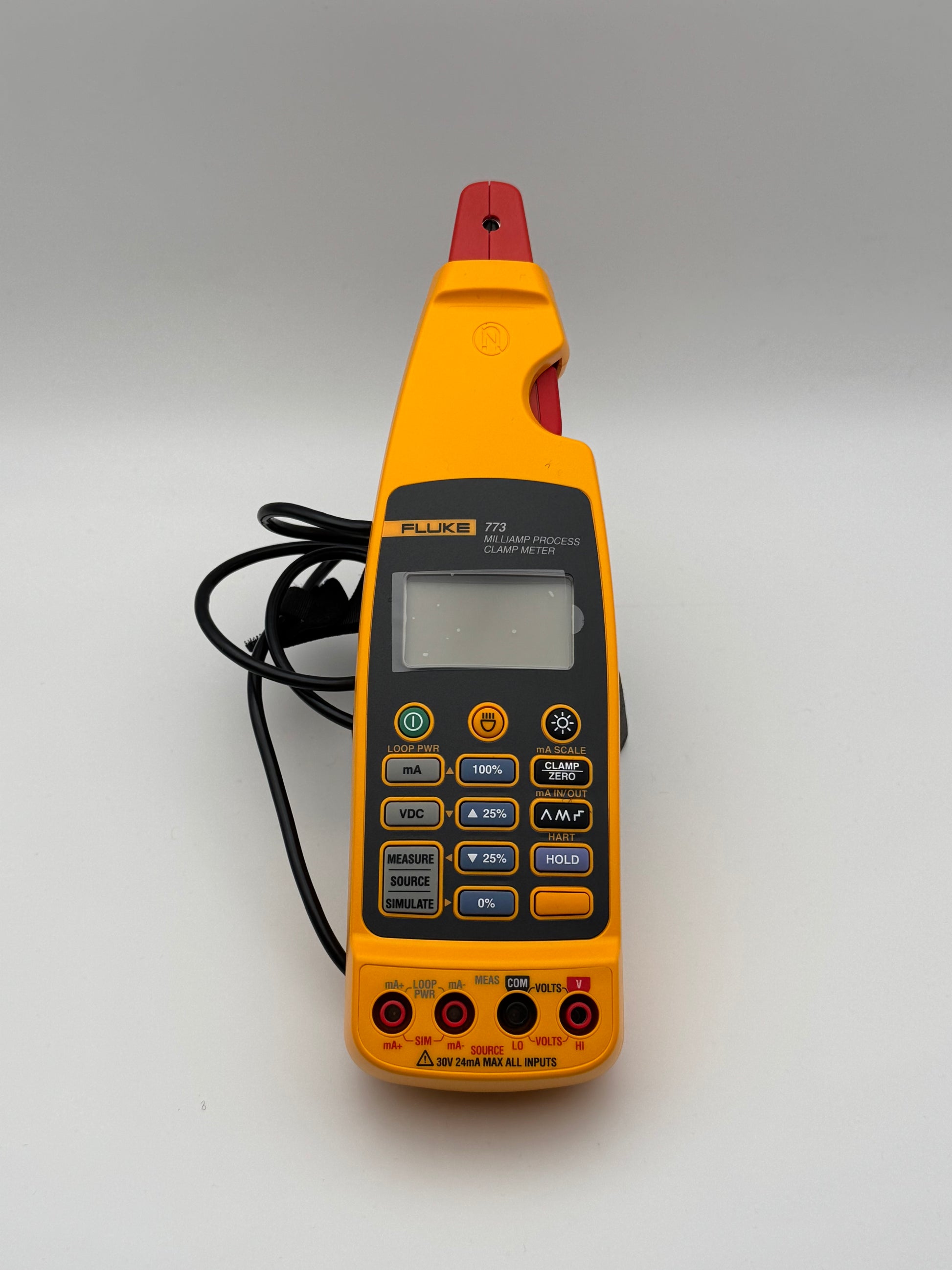

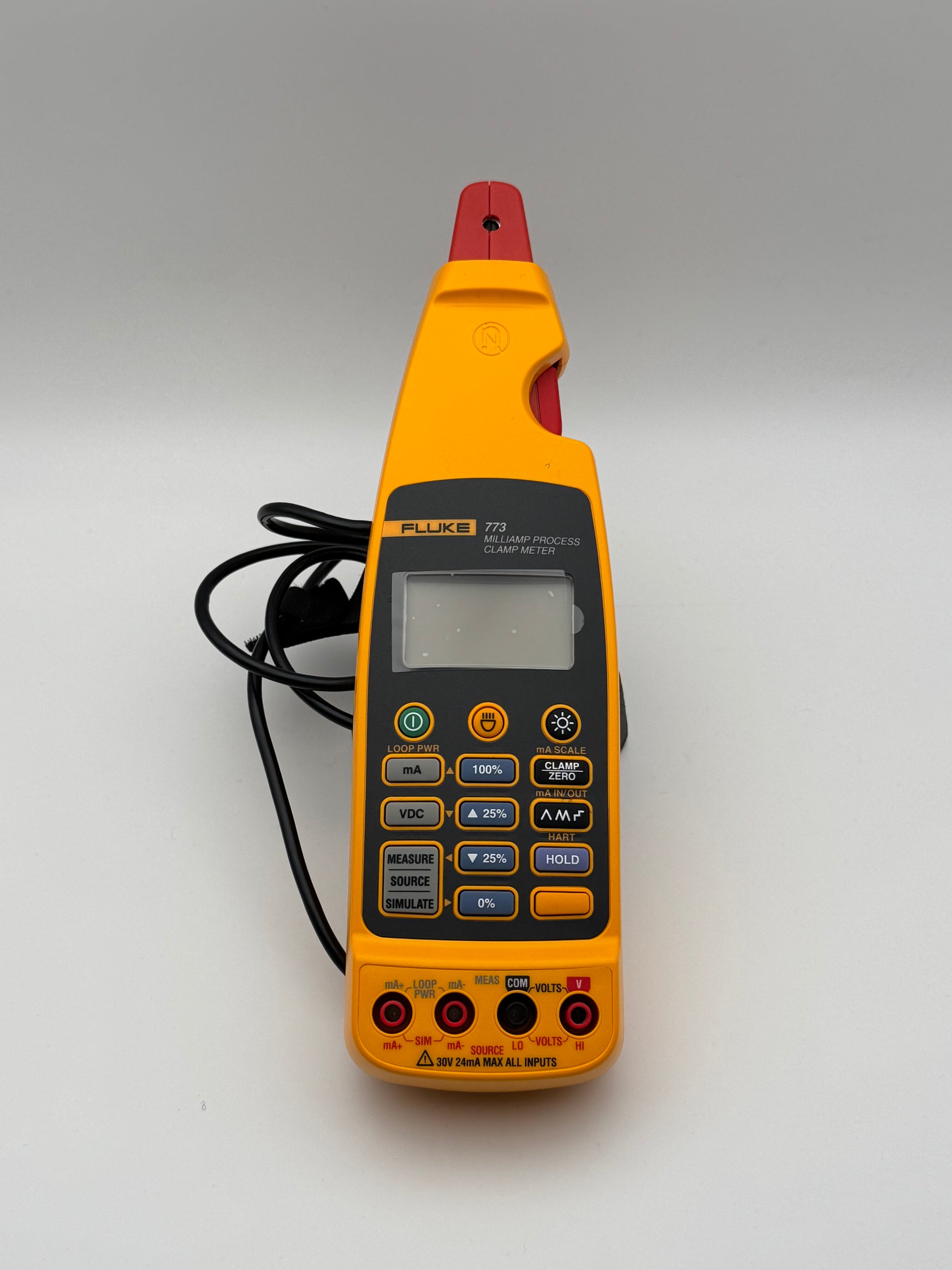

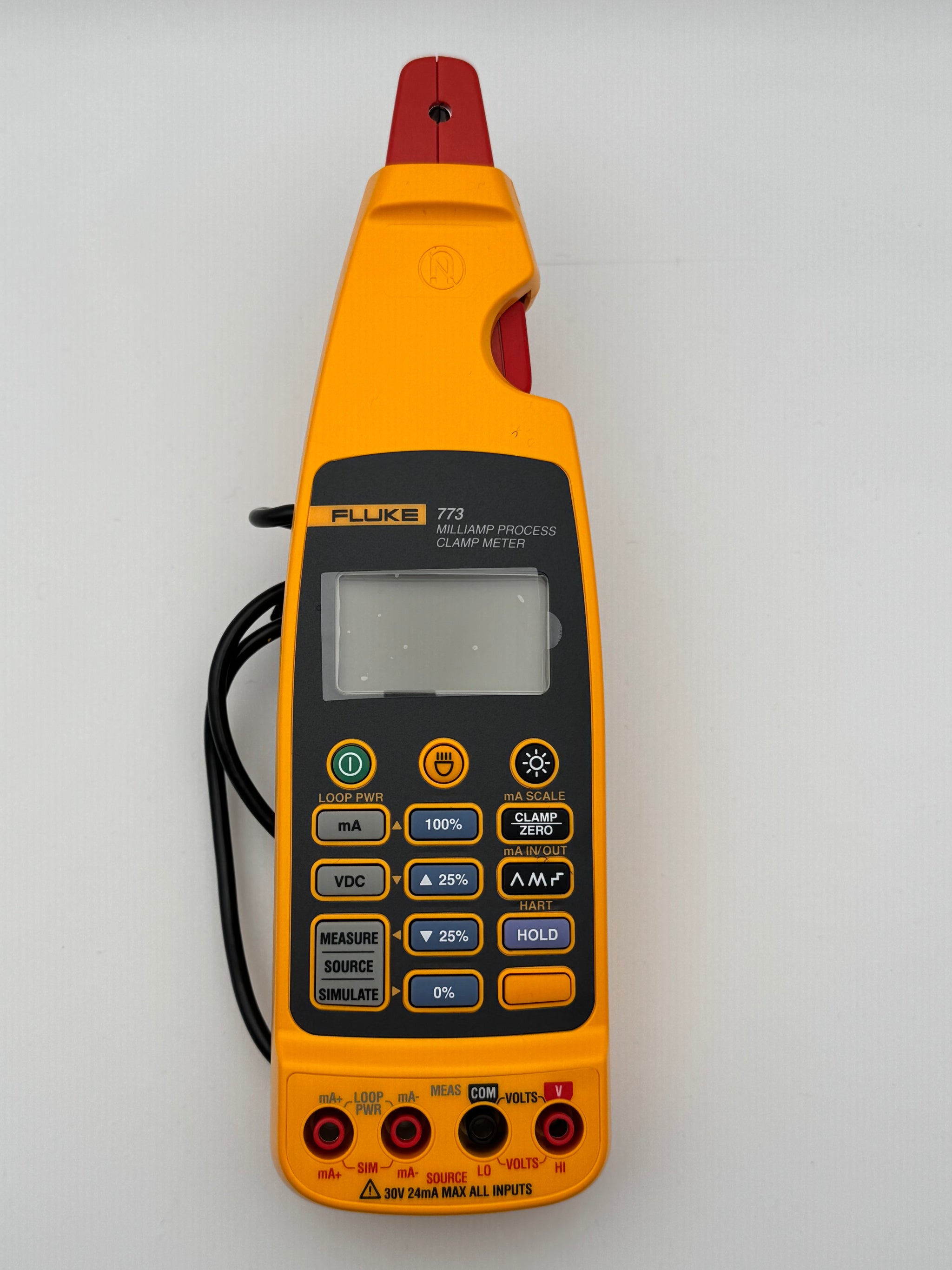

Fluke 773 Milliamp Process Clamp Meter

Key Features

• Measure 4 to 20 mA signals without breaking the loop
• Source/simulate 4 to 20 mA signals and provide loop power
• Source/measure DC voltage to verify power supplies or I/O signals
• Best in class accuracy of 0.2%
• Delivers 0.01 mA resolution and sensitivity


Overview

The Fluke 773 milliamp clamp meter is accurate, versatile, and highly portable. It saves time and money by measuring 4–20 mA signals five times faster than with traditional multimeters, and without breaking the loop. That means you can troubleshoot a live device without having to power down and possibly miss something going on in the process.

The 773 is ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. The 773 allows you to connect to a mA loop in a traditional series workflow to measure, source, or simulate a control system. And it measures up to 99.0 mA non-contact, including 10 to 50 mA signals in older control systems.

The 773 also sources and measures DC voltage, so it can be used to troubleshoot voltage input and output devices that accept a 1-5 V or 0 to 10 V signal. You can detach the clamp section of the meter and use it as a remote jaw, connected to the main body by an extension cable to make it easier to take measurements in tight spaces.

Includes

• NATA calibration certificate
• Four AA alkaline batteries (installed)
• Soft carrying case
• TL75 test leads
• AC 72 detachable clip
• TL 940 mini hook test leads
• Instruction sheet
• Hanging tool with hook and loop strap
